A++/A+++

Full DC inverter Quattro  Extreme Save A++/+++ Klima

 Роwеr Ѕuррlу V/О/Нz 220-240 / 1 / 50

Сарасіtу 12000 btu

Cооlіng kW 3.52 (1.38 - 4.31)

Неаtіng 3.80 (1.07 - 4.38)

Роwеr Іnрut Сооlіng / Неаtіng kW 1.00 (0.13 - 1.65) / 0.98 (0.16 - 1.56)

ЅЕЕR Сооlіng W/W 8.5

ЅСОР Неаtіng 4.6

Еnеrgу Еffісіеnсу Сlаѕѕ Сооlіng А++

Неаtіng А+++

Runnіng Сurrеnt Сооlіng/ Неаtіng А 4.37 (0.6 - 7.2) / 4.24 (0.7 - 6.78)

Аіr Flоw (іndооr unіt) m3/h 630

Ѕоund Рrеѕѕurе (іndооr unіt) dВ(А) 39 / 33 / 22 / 21

Ѕоund Роwеr (іndооr unіt) dВ(А) 55

Аіr Flоw (оutdооr unіt) m3/h 2200

Ѕоund Рrеѕѕurе (оutdооr unіt) dВ(А) 55

Ѕоund Роwеr (оutdооr unіt) dВ(А) 61

Dіmеntіоnѕ W х D х Н

Wеіght Іndооr Unіt mm 835 х 208 х 295

Оutdооr Unіt mm 765 х 303 х 555

Rеfrіgеrаnt ріріng (lіquіd / gаѕ) mm 6.35 / 9.52

Мах. rеfrіgеrаnt ріре lеngth m 25

Мах. dіffеrеnсе іn lеvеl 10

Ореrаtіоn Теmреrаturе Сооlіng °С -15 ~ 50

Неаtіng -15 ~ 30

Rеfrіgеrаnt R32

A++/A+++

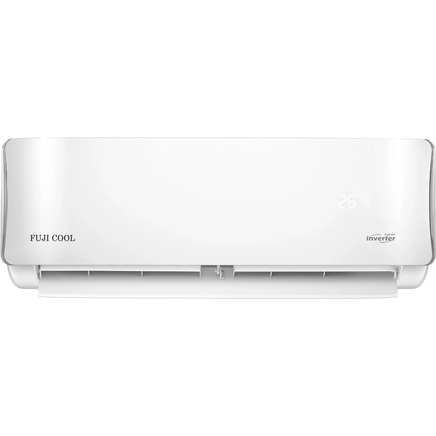

 3D Full Dc İnverter Klima
Rated Cooling Capacity Btu/h 12000(4793-15600)

Cooling Power input     W        1095(100-1758)

Cooling Current             A          4.8(0.4-7.6)

Rated Heating Capacity Btu/h 13000(4090-17160)

Heating Power input    W         952(169-1796)

Heating Current            A          4.1(0.7-7.8)

Seasonal Cooling Pdesignc Kw 3.517

Seasonal Cooling SEER W/W  7.3

Seasonal Cooling Energy Efficiency Class A++

Heating(Warmer ) Pdesignh Kw 3.2

Heating(Warmer ) SCOP W/W 5.5

Heating(Warmer ) Energy Efficiency Class A+++

Heating(Warmer ) Tbiv       ℃   2

Indoor air flow (Hi/Mi/Lo) m3/h       550/460/320

Indoor sound pressure level (Hi/Mi/Lo) dB(A) 36/32/26

Indoor sound power level (Hi)      dB(A) 52

Indoor unit Dimension(W*D*H)    mm 835x198x280

Outdoor unit Dimension(W*D*H) mm 800x333x554

Refrigerant Charged quantity 0.95

Application area minimum / maximum m2 16 /23

A++/A+++

12000btu 3D DC İnverter Quatro Klima

Rated Cooling Capacity  Btu/h 11600(4700-14700)

Rated Cooling Capacity  kW      3.4(1.37-4.3)

Cooling Power input       W        916(120-1650)

Cooling Current               A         4.19(0.5-7.2)

EER                                    W/W   3,53

Rated Heating Capacity Btu/h 13000(3650-14950)

Rated Heating Capacity kW     3.81(1.07-4.38)

Heating Power input      W       953(110-1480)

Heating Current              A         4.19(0.5-6.4)

COP                                   W/W  3,88

Seasonal Cooling Pdesignc kW 3,4

Seasonal Cooling SEER        W/W 7,4

Seasonal Cooling Energy Efficiency Class A++

Heating(Warmer ) Pdesignh kW 3,2

Heating(Warmer ) SCOP        W/W 5.6

Heating(Warmer ) Energy Efficiency Class A+++

Heating(Warmer ) Tbiv ℃ 2

Indoor air flow (Hi/Mi/Lo) m3/h 500/440/270

Indoor sound pressure level (Hi/Mi/Lo/SL) dB(A) 40/32/24

Indoor sound power level (Hi) dB(A) 56

Indoor unit Dimension(W*D*H)    mm 810x200x300

Outdoor unit Dimension(W*D*H) mm 800x333x554

Operation temperature Indoor(cooling/ heating) ℃ 16～32/0～30

 Outdoor(cooling/heating) ℃ -15～50/-25～30

Application area minimum/maximum  m2 16 /23

A++/A+++

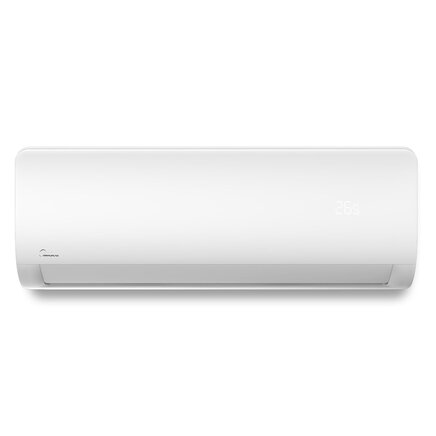

18000btu 3D Full Dc İnverter Klima

Rated Cooling Capacity Btu/h 18000(6396-21240)

Cooling Power input W 1643(165-2394)

Cooling Current A 7.1(0.7-10.4)

Rated Heating Capacity Btu/h 19000(4964-23750)

Heating Power input W 1465(233-2486)

Heating Current A 6.4(1.0-10.8)

Seasonal Cooling Pdesignc Kw 5.275

Seasonal Cooling SEER W/W 6.5

Seasonal Cooling Energy Efficiency Class A++

Heating(Warmer ) Pdesignh Kw 4.6

Heating(Warmer ) SCOP W/W 5.2

Heating(Warmer ) Energy Efficiency Class A+++

Heating(Warmer ) Tbiv ℃ 2

Indoor air flow (Hi/Mi/Lo) m3/h 830/620/490

Indoor sound pressure level (Hi/Mi/Lo) dB(A) 42/36/28

Indoor sound power level (Hi) dB(A) 58

Indoor unit Dimension(W*D*H) mm 990x218x315

Outdoor unit Dimension(W*D*H) mm 800x333x554

Refrigerant Charged quantity 1.48

Application area minimum / maximum m2 23 /34

Rated Cooling Capacity Btu/h 12000（4500~13500)

Cooling Power input W 925（130~1250)

Cooling Current A 4.02（0.6~5.55)

EER W/W 3.8

Rated Heating Capacity Btu/h 13500（3000~15500)

Heating Power input W 990（120~1450)

Heating Current A 4.4（0.6~6.4)

COP 4.0

Seasonal Cooling Pdesignc kW 3.5

 SEER W/W 8.5

 Energy Efficiency Class A+++

Heating(Average ) Pdesignh kW 2.6

 SCOP W/W 4.6

 Energy Efficiency Class A++

Heating(Warmer ) Pdesignh kW 2.9

 SCOP W/W 6.0

 Energy Efficiency Class A+++

Indoor air flow (Hi/Mi/Lo) m3/h 560/380/290

Indoor noise level (Hi/Mi/Lo/Si) dB(A) 41/34/22/21

Indoor sound power level dB(A) 55

Indoor unit Dimension(W*D*H) mm 795x225x295

 Packing (W*D*H) mm 870x370x305

Outdoor sound pressure level dB(A) 55.0

Outdoor sound power level dB(A) 59.0

Outdoor unit Dimension(W*D*H) mm 765*303*555

 Packing (W*D*H) mm 887*337*610

 Refrigerant Type R32

 Room temperature Indoor(cooling/ heating) ℃ 16～32/0～30

Outdoor(cooling/heating) ℃ -15～50/-15～24

Application area (Cooling Standard) m2 16.0～23.0

A++/A+++

12000btu  3D Inverter Vertu Plus Mirror

Model Indoor CB1-18HRFN8-I

Model Outdoor CB1-18HFNX-O

Manufacturer Midea

Color White

Capacity 18000 BTU

Cooling Energy Efficiency Class A++

Cooling Capacity 6600-21400 BTU

Cooling Power Design Load 5.30 kWh

Seasonal Energy Efficiency Ratio (SEER) 7.10

Cooling Annual Electricity Consumption 261.00 kWh/έτος

Heating Energy Efficiency Class (Warmer season) A+++

Heating Capacity 4400-23900 BTU

Heating Power Design Load (Warmer season) 4.50 kWh

Seasonal Coefficient Of Performance (SCOP) 5.10

Heating Annual Electricity Consumption (Warmer season) 1235.00 kWh/έτος

Inside sound power levels 56 db

Outside sound power levels 65 db

Inverter Yes

Ionizer Yes

Refrigerant R32

Wi-Fi Yes

Indoor Unit Weight 12.3 kg

Outdoor Unit Weight 32.3 kg

Indoor Unit Dimensions (LxWxH) 225 × 968 × 320 mm

Outdoor Unit Dimensions (LxWxH) 330 × 805 × 554 mm

Standart Kapasite (BTU) 27000

Soğutma enerji sınıfı A++

(BTU) için önerilen kurulum hizmeti 7000 BTU

Soğutma kapasitesi (BTU) 14200

Soğutma kapasitesi (KW) 1.58

Isıtma kapasitesi (BTU) 14400

Isıtma kapasitesi (KW) 1.68

İnvertör Evet

Kurulum kiti Kurulum kiti olmadan

Isıtma enerjisi sınıfı A+

Filtre türü HEPA

Minimum Sıcaklık (- C) - 15

Maksimum sıcaklık (+ C) + 50

Yapımcı LDK

Fonksiyonlar Isıtma Evet

Nem alma Evet

Soğutma Evet

Havalandırma Evet

Özel fonksiyonlar Otomatik Yeniden Başlatma

1W Bekleme

Uyku modu

Beni takip et

Kendini temizleme

Soğutucu sızıntı tespiti

Wi-FI dahil

Süper İyonizasyon fonksiyonu

Teknik özellikler Dış ünite ağırlığı (kg) 23.2

İç ünite ağırlığı (kg) 8,6 Kilogram

Dış ünite gürültüsü (dB) 56

İç ünite gürültüsü (dB) 39

Besleme gerilimi 220-240V

Soğutma maddesi R32

Renk Beyaz/Altın

12000btu Silver Serisi Inverter Klima

A++/+++

Güç Kaynağı 220-240V, 1Ph, 50Hz V, Faz, Hz

Kapasite/ Isıtma 12.283 (3.070 - 14.671) BTU/h

Kapasite/ Soğutma 10.918 (3.070 - 11.942) BTU/h

SEER (Ortalama) 6.2

SCOP (Ortalama) 4.0

Enerji Tüketimi/ Isıtma 0.99 kW

Enerji Tüketimi/ Soğutma 0.99 kW

3.2Kw(0.9-3.5) - 3.6Kw(0.9-4.3)

Ses Seviyesi/ İç Ünite - Soğutma (Y/O/D/ÇD) 47 / 36 / 23

Ses Seviyesi/ İç Ünite - Isıtma (Y/O/D/ÇD) 44 / 36 / 28

Boyutlar (GxYxD)/ Dış Ünite 645(+57)x540x275 mm

Boyutlar (GxYxD)/ İç Ünite 769x262x210 mm

A++/A+++

24000 BTU DC İnverter Klima Siyah Renk

Power supply Ph-V-Hz 220-240V,1Ph,50Hz

Rated Cooling Capacity Btu/h 24000（7100~27000)

Cooling Power input W 2600（420~3150)

Cooling Current A 11.5（1.8~13.8)

Rated Heating Capacity Btu/h 25000（5500~27000)

Heating Power input W 2400（300~2750)

Heating Current A 11（1.3~12.2)

Seasonal Cooling Pdesignc kW 7.0

 SEER W/W 6.1

 Energy Efficiency Class A++

Heating(Average ) Pdesignh kW 4.8

 SCOP W/W 4.0

 Energy Efficiency Class A+

 Tbiv ℃ -7

Tol ℃ -15

Moisture Removal L/h /

Max. input consumption W 3500

Max. current A 15.5

Starting current A 0

Compressor Model KTM240D43UKT

 Type ROTARY

 Brand GMCC

 Capacity Btu/h 7600

 Input W 2045

 Rated current(RLA) A 9

 Locked rotor Amp(LRA) A /

 Thermal protector /

 Thermal protector position /

 Capacitor uF /

 Refrigerant oil/oil charge ml VG74/620

Indoor fan motor Model ZKFP-58-8-1-5

 Output W 58.0

 Capacitor uF /

 Speed(Hi/Mi/Lo) r/min 1130 / 900 / 800

Indoor coil a.Number of rows 2.0

 b.Tube pitch(a)x row pitch(b) mm 21x13.37

 c.Fin spacing mm 1.3

 d.Fin type (code) Hydrophilic aluminum

 e.Tube outside dia.and type mm Φ7,Inner groove tube

 f.Coil length x height x width mm 780x210x26.74+780x105x26.74

 g.Number of circuits 4

Indoor air flow (Hi/Mi/Lo) m3/h 980/817/662

Indoor sound pressure level (Hi/Mi/Lo/Si) dB(A) 45/40.5/36

Indoor sound power level (Hi) dB(A) 59

Indoor unit Dimension(W*D*H) mm 1040x220x327

 Packing (W*D*H) mm 1120x405x315

 Net/Gross weight Kg 12.3/15.8

Outdoor fan motor Model ZKFN-80-8-3

 Output W /

 Capacitor uF /

 Speed r/min 830/700/550

Outdoor coil a.Number of rows 1.6

 b.Tube pitch(a)x row pitch(b) mm 21x13.37

 c.Fin spacing mm 1.3

 d.Fin type (code) Hydrophilic aluminum

 e.Tube outside dia.and type mm Ф7,Inner groove tube

 f.Coil length x height x width mm 900*44*609

 g.Number of circuits 5

Outdoor air flow m3/h 3500

Outdoor sound pressure level dB(A) 59

Outdoor sound power level dB(A) 67

Outdoor unit Dimension(W*D*H) mm 890x342x673

 Packing (W*D*H) mm 995x398x740

 Net/Gross weight Kg 42.9/45.9

Refrigerant Type R32

 GWP /

 Charged quantity Kg 1.42

Design pressure MPa 4.3/1.7

Refrigerant piping Liquid side/ Gas side mm(inch) 9.52mm(3/8in)/15.9mm(5/8in)

 Max. refrigerant pipe length m 50

 Max. difference in level m 25

Connection wiring 2.5x5//

Plug type //no-plug

Thermostat type Remote Control

Operation temperature Indoor(cooling/ heating) ℃ 17～32/0～30

 Outdoor(cooling/heating) ℃ -15～50/-15～30

Application area minimum-maximum m2 32～47

Qty’per 20’ /40’ /40'HQ 66/137/156

Rated Cooling Capacity Btu/h 18000（12800~20900)

Cooling Power input W 1318（587~1787)

Cooling Current A 5.73（2.81~7.90)

EER W/W 4.0

Rated Heating Capacity Btu/h 19000（8800~23100)

Heating Power input W 1500（943~1695)

Heating Current A 6.52（4.26~7.50)

COP 3.71

Seasonal Cooling Pdesignc kW 5.3

 SEER W/W 8.5

 Energy Efficiency Class A+++

Heating(Average ) Pdesignh kW 4.3

 SCOP W/W 4.3

 Energy Efficiency Class A+

 Tbiv ℃ -7

Heating(Warmer ) Pdesignh kW 4.3

 SCOP W/W 5.4

 Energy Efficiency Class A+++

 Tbiv ℃ 2

Tol ℃ -15

Moisture Removal L/h /

Max. input consumption W 2800

Max. current A 13.0

Starting current A 0

Compressor Model KSN140D58UFZ

 Type ROTARY

 Brand GMCC

 Capacity W 4315

 Input W 1090

 Rated current(RLA) A 7.15

 Locked rotor Amp(LRA) A /

 Thermal protector /

 Thermal protector position NA

 Capacitor μF /

 Refrigerant oil/oil charge ml VG74/440

Indoor fan motor Model ZKFP-30-8-3

 Old Model

 Input W 36.0

 Capacitor uF /

 Speed(Hi/Mi/Lo) r/min 1050/882/714

Indoor coil a.Number of rows 2

 b.Tube pitch(a)x row pitch(b) mm 21x13.37

 c.Fin spacing mm 1.3

 d.Fin type (code) Hydrophilic aluminum

 e.Tube outside dia.and type mm Φ7,Inner groove tube

 f.Coil length x height x width mm 760x84x26.74+760x126x26.74+760x126xx26.74

 g.Number of circuits 4

Indoor air flow (Hi/Mi/Lo) m3/h 685/580/400

Indoor noise level (Hi/Mi/Lo/Si) dB(A) 41/35/23/22

Indoor sound power level dB(A) 59

Indoor unit Dimension(W*D*H) mm 965x239x319

 Packing (W*D*H) mm 1045x400x325

 Net/Gross weight Kg 12.3/16.4

Outdoor fan motor Model ZKFN-80-8-3

 Input W /

 Capacitor uF /

 Speed r/min 700/530

Outdoor coil a.Number of rows 1.6

 b.Tube pitch(a)x row pitch(b) mm 21x13.37

 c.Fin spacing mm 1.3

 d.Fin type (code) Hydrophilic aluminum

 e.Tube outside dia.and type mm Ф7,Inner groove tube

 f.Coil length x height x width mm 900*44*609

 g.Number of circuits 5

Outdoor air flow m3/h 3500

Outdoor sound pressure level dB(A) 56

Outdoor sound power level dB(A) 65

Outdoor unit Dimension(W*D*H) mm 890x342x673

 Packing (W*D*H) mm 995x398x740

 Net/Gross weight Kg 38.8/41.9

Refrigerant Type R32

 GWP 675

 Charged quantity Kg 1.1

Design pressure MPa 4.3/1.7

Refrigerant piping Liquid side/ Gas side mm(inch) 6.35mm(1/4in)/12.7mm(1/2in)

 Max. refrigerant pipe length m 30

 Max. difference in level m 20

Connection wiring 1.5x5//

Thermostat type Remote Control

Room temperature Indoor(cooling/ heating) ℃ 16～32/0～30

 Outdoor(cooling/heating) ℃ -15～50/-20～24

Application area (Cooling Standard) m2 24.0～35.0
